Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board

Ask Latest Price
Brand Name:RONGSHENG
Model Number:10101-52-7
Certification:ISO9001
Company Data
Verified Supplier
Contact Person Pika
Business Type: Manufacturer
Officials: 10th & 11th Floors, No.6 Building, Central China Electronic Commerce Port, Daxue Road, Erqi District, ZhengZhou City, Henan Province, China
Quality: Quality Certifitation Available
Visit Website
Product Details Company Profile
Product Details
Product Description

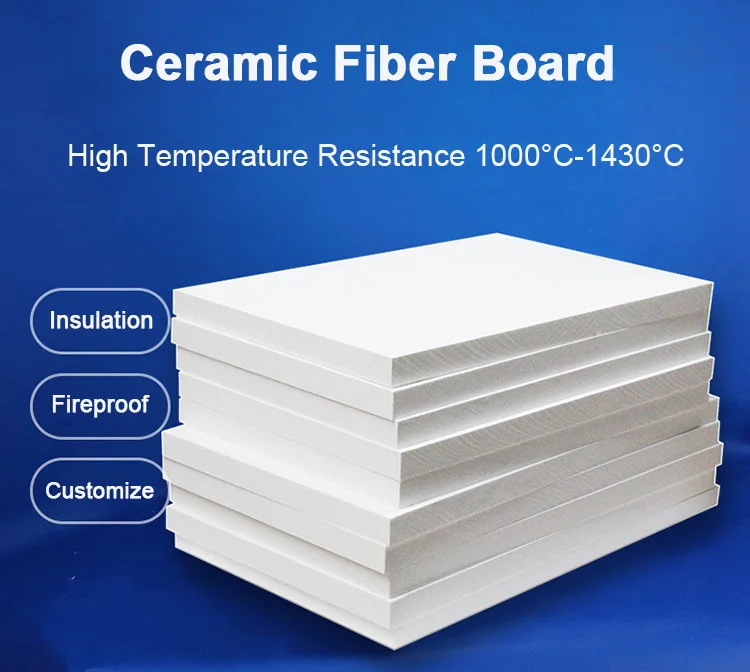

Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Ceramic fiber board is a high-performance insulation product made of high-purity ceramic fiber by adding the right amount of organic matter and binder. It is flat, ceramic materials are evenly distributed, free of asbestos and environmental protection. ceramic fiber insulation boards solid texture, wind erosion resistance, excellent toughness and other advantages make it an ideal material for kilns, pipes and other insulation types of equipment. It has low thermal conductivity and low thermal storage, and no expansion during heating, which can reduce energy cost and cycle time, and protect the surface of refractory from thermal shock and chemical attack.
Product Advantage

Fire resistant ceramic fiber board advantage:


1, with high temperature thermal conductivity, light weight, long life, tensile strength, good elasticity, non-toxic and so on.
2, high compressive strength, long service life;
3, low heat capacity, low thermal conductivity;
4, non-brittle material, good toughness;
5, the size of accurate, good flatness;
6, easy to install,
7, excellent anti-wind erosion performance;
8, continuous production, fiber distribution, performance and stability;
9, excellent sound and noise reduction performance.
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Aluminium Silicate High Temperature Insulation Ceramic Fiber Blanket 20mm 50mm Ceramic Fiber Thermal Insulation Board
Specification
Type
COM
ST
HP
HA
Zir-Alu
HZ
Classified Temp.
1100ºC
(1983ºF)
1260ºC
(2300ºF)
1260ºC
(2300ºF)
1360ºC
(2480ºF)
1400ºC
(2550ºF)
1430ºC
(2600ºF)
Working Temp.
<1000ºC
(2012ºF)
1050ºC
(1922ºF)
1100ºC
(2012ºF)
1200ºC
(2192ºF)
1200ºC
(1192ºF)
1350ºC
(2462ºF)
Color
white
white
white
white
white
white
Density(kg/m3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
260-320
(16-20lb/ft3)
Linear Shrinkage (%)
(24 hrs)
-3
(1000ºC/1832ºF)
-3
(1000ºC/1832ºF)
-3
(1100ºC/2012ºF)
-3
(1250ºC/2282ºF)
-3
(1000ºC/2012ºF)
-3
(1350ºC/2462ºF)



Thermal conductivity
(W/M.K)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
0.085
(400ºC/752ºF)
0.132
(800ºC/1472ºF)
0.180
(1000ºC/2012ºF)
Compression Strength
(Mpa)
0.5
0.5
0.5
0.5
0.5
0.5

Chemical(%)
Al2O3
44
46
47-49
52-55
45-46
39-40
Al2O3+SiO2
96
97
99
99
-
-
Al2O3+SiO2+ZrO2
-
-
-
-
99
ZrO2
-
-
-
-
.5-7
15-17
Fe2O3
<1.2
<1.0
0.2
0.2
0.2
0.2
Na2O+K2O
≤0.5
≤0.5
0.2
0.2
0.2
0.2
Size(mm)
1200*1000mm(47″*40″); 1000*600mm(40″*36″);900*600mm(24″*36″)
20-50mm(1″/2″)thickness
Company Profile

Zhengzhou Rongsheng Refractory Co., Ltd.

Our company can provide not only the domestic and foreign customers excellent quality of high-temperature thermal insulation material, but also the first-rate service including professional furnace lining design, installation supervision, engineering construction etc.



<p style="box-sizing: border-box; margin-top: 1.6rem; margin-bottom: 1.6rem; color: rgb(51, 51, 51); font-family: " segoe="" ui",="" "lucida="" grande",="" helvetica,="" arial,="" "microsoft="" yahei",="" freesans,="" arimo,="" "droid="" sans",="" "wenquanyi="" micro="" hei",="" "hiragino="" sans="" gb",="" gb="" w3",="" fontawesome,="" sans-serif;="" font-size:="" 16px;"="">We can provide our customers with professional and personalized products and engineering services according to the actual working condition and requirements of each customer, in order to meet customers’ increasing demand of energy-saving and products quality improving, Our tenet is: quality and credibility is fundamental, technology and service is the life.
