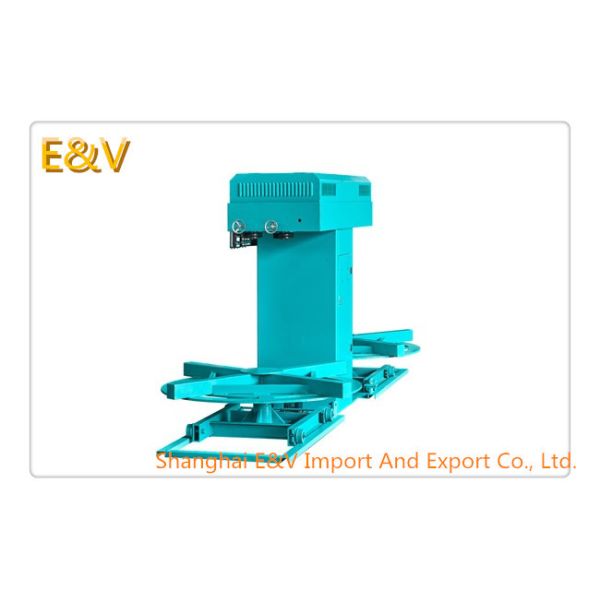

Automatic Non Oxygen Upward Continuous Casting Machine With PLC Control
Ask Latest Price
Brand Name:E&V
Model Number:SYJ
Supply Ability:1SET PER MONTH
Delivery Time:60 days
Company Data
Verified Supplier
Contact Person
Cherry
Business Type:
Manufacturer Importer Exporter Trading Company Seller
Officials:
Room1190,No.106 xinling road China(shanghai), pilot free trade zone
Quality:
Quality Certifitation Available
Visit Website
Product Details
Company Profile
Product Details
non-oxygen continuous upcasting machine
Main Technology Parameter For Copper Rod Up-casting Machine1
2000MTΦ8mm→Φ14.4mm | 2000MTΦ17mm→Φ30mm | 3000MTΦ8mm→Φ14.4mm | ||
| Main para-meter | 1 | Model: SYJ0408-I2 | Model: SYJ0417-I2 | Model: SYJ0608-I3 |
| 2 | Yearly capacity:2000mt | Yearly capacity:2000mt | Yearly capacity:3000mt | |
| 3 | Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) | Furnace structure:300type two- body furnace(1melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | |
| 4 | Casting strands:4 | Casting strands:4 | Casting strands:6 | |
| 5 | Casting rod diameter : Φ8mm→Φ14.4mm | Casting rod diameter : Φ17mm→Φ30mm | Casting rod diameter : Φ8mm→Φ14.4mm | |
| 6 | casting speed:0～3000mm/min | casting speed: 0～1000mm/min | casting speed: 0～3000mm/min | |
| 7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
| 8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
| 9 | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | |
| 10 | Copper melting velocity:260kg/h | Copper melting velocity:260kg/h | Copper melting velocity:380kg/h | |
| 11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
| 12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
| 13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by copper rod,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
| 14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
| 15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
| 16 | Rod clamping method:air clamping | Rod clamping method: manual clamping | Rod clamping method:air clamping | |
| 17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
| 18 | Total power:150KW AC three-phase 380V | Total power:150KW AC three-phase 380V | Total power:200KW AC three-phase 380V | |
| Price | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | |
Main Technology Parameter For Copper Rod Up-casting Machine2
3000MT Ф17mm→Ф30mm | 5000MT Ф8mm→Ф14.4mm | 5000MT Ф17mm→Ф30mm | ||
Main Para-meter | 1 | Model: SYJ0617-I3 | Model: SYJ1008-I3 | Model: :SYJ1017-I3 |
| 2 | Yearly capacity:3000mt | Yearly capacity:5000mt | Yearly capacity:5000mt | |
| 3 | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:300type three- body furnace(2melting furnace,1 holding furnace) | |
| 4 | Casting strands:6 | Casting strands:10 | Casting strands:10 | |
| 5 | Casting rod diameter : Ф17mm→Ф30mm | Casting rod diameter : Ф8mm→Ф14.4mm | Casting rod diameter : Ф17mm→Ф30mm | |
| 6 | casting speed:0～1000mm/min | casting speed:0～3000mm/min | casting speed:0～1000mm/min | |
| 7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
| 8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
| 9 | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | |
| 10 | Copper melting velocity:380kg/h | Copper melting velocity:650kg/h | Copper melting velocity:650kg/h | |
| 11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
| 12 | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | |
| 13 | Take-up plate driven approach: pushed by copper rod,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by copper rod,manual adjusting | |
| 14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
| 15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
| 16 | Rod clamping method:manual clamping | Rod clamping method:air clamping | Rod clamping method: manual clamping | |
| 17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
| 18 | Total power:200KW AC three-phase 380V | Total power:240KW AC three-phase 380V | Total power:240KW AC three-phase 380V | |
| Price | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | |
Main Technology Parameter For Copper Rod Up-casting Machine3
8000MTФ8mm→Ф14.4mm | 8000MTФ17mm→Ф30mm | 10000MTФ8mm→Ф14.4mm | ||
| Main para-meter | 1 | Model :SYJ1608-I3 | Model :SYJ1617-I3 | Model :SYJ2008-I3 |
| 2 | Yearly capacity:8000mt | Yearly capacity:8000mt | Yearly capacity:10000mt | |
| 3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
| 4 | Casting strands :16 | Casting strands :16 | Casting strands :20 | |
| 5 | Casting diameter: Ф8mm→Ф14.4mm | Casting diameter: Ф17mm→Ф30mm | Casting diameter: Ф8mm→Ф14.4mm | |
| 6 | Casting speed:0～3000mm/min | Casting speed :0～1000mm/min | Casting speed:0～3000mm/min | |
| 7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
| 8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
| 9 | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | |
| 10 | Copper melting velocity:1020kg/h | Copper melting velocity:1020kg/h | Copper melting velocity:1270kg/h | |
| 11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
| 12 | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | |
| 13 | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod, manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | |
| 14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
| 15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
| 16 | Rod clamping method: air clamping | Rod clamping method: manual clamping | Rod clamping method: air clamping | |
| 17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
| 18 | Total power:400KW AC three-phase 380V | Total power:400KW AC three-phase 380V | Total power:500KW AC three-phase 380V | |
| Price | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | |
Main Technology Parameter For Copper Rod Up-casting Machine4
10000MTФ17mm→Ф30mm | 12000MTФ8mm→Ф14.4mm | 12000MTФ17mm→Ф30mm | ||
| Main para-meter | 1 | Model :SYJ2017-I3 | Model :SYJ2408-I3 | Model :SYJ2417-I3 |
| 2 | Yearly capacity:10000mt | Yearly capacity:12000mt | Yearly capacity:12000mt | |
| 3 | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | Furnace structure:500type three- body furnace(2melting furnace,1 holding furnace) | |
| 4 | Casting strands:20 | Casting strands:24 | Casting strands:24 | |
| 5 | Casting diameter: Ф17mm→Ф30mm | Casting diameter: Ф8mm→Ф14.4mm | Casting diameter: Ф17mm→Ф30mm | |
| 6 | Casting speed :0～1000mm/min | Casting speed 0～3000mm/min | Casting speed 0～1000mm/min | |
| 7 | annual working time:7920h | annual working time:7920h | annual working time:7920h | |
| 8 | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | Liquid tracking precision:±2mm | |
| 9 | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | Take-up coil standard: φ700mm×φ1500mm×800mm | |
| 10 | Copper melting velocity:1270kg/h | Copper melting velocity:1520kg/h | Copper melting velocity:1520kg/h | |
| 11 | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | Copper melting power consumption:<350kwh/ton | |
| 12 | Take-up form: automatic adjust | Take-up form: frequency automatic adjust | Take-up form: automatic adjust | |
| 13 | Take-up plate driven approach: pushed by rod ,manual adjusting | Take-up plate driven approach: PLC control, frequency adjust,automatic coiling | Take-up plate driven approach: pushed by rod ,manual adjusting | |
| 14 | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | Material feeding method:whole piece of electrolytic copper cathode fed by electric hoist | |
| 15 | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | Upward driven approach:driven by the AC servo motor, transmission chain is driven by the gapless synchronous cog blet | |
| 16 | Rod clamping method: manual clamping | Rod clamping method: air clamping | Rod clamping method: manual clamping | |
| 17 | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | Operation interface:date display,servo motor controlled by touch screen | |
| 18 | Total power:500KW AC three-phase 380V | Total power:600KW AC three-phase 380V | Total power:600KW AC three-phase 380V | |
| price | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | A price: price negotiable AA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling ) AAA price: price negotiable (updates price A: 1.change the brand of electrical panel to Siemens,2.stepless automatic temper controlling, 3.full-automatic feeding devise) | |
